Product Introduction

Right-Angle Stepper Belt Drive Linear Rail Stage is a typical front mounting ball screw linear guide module that has been innovated with a purpose to solve the problem areas of conventional linear guide modules because of inadequate space for mounting, batch machine parts interchangeability, low performance in dusty and oily environment, and decreased accuracy in long stroke operation.

Product Features

Right-Angle Stepper Belt Drive Linear Rail Stage type adopts the conventional compact motor front right folding installation structure along with the totally enclosed steel belt protection housing that follows the IP54 standards, thereby ensuring efficient savings on the installation space of the machine while also offering effective stability of operations under extreme operating conditions due to dirt and oil contamination. This model employs the ball screws assembly grade C7 along with the dual linear guide ways assembly of high rigidity, and it provides precision accuracy up to ±0.02mm.

Technical Specifications

Right-Angle Stepper Belt Drive Linear Rail Stage
Stroke	L	KG
800	1150	9.55
850	1200	9.80
900	1250	10.05
950	1300	10.30
1000	1350	10.55
1050	1400	10.80
1100	1450	11.05
1150	1500	11.30
1200	1550	11.55
1250	1600	11.80
1300	1650	12.05
1350	1700	12.30
1400	1750	12.55
1450	1800	12.80
1500	1850	13.05
1550	1900	13.30
1600	1950	13.55
1650	2000	13.80
1700	2050	14.05
1750	2100	14.30
1800	2150	14.55
1850	2200	14.80
1900	2250	15.05
1950	2300	15.30

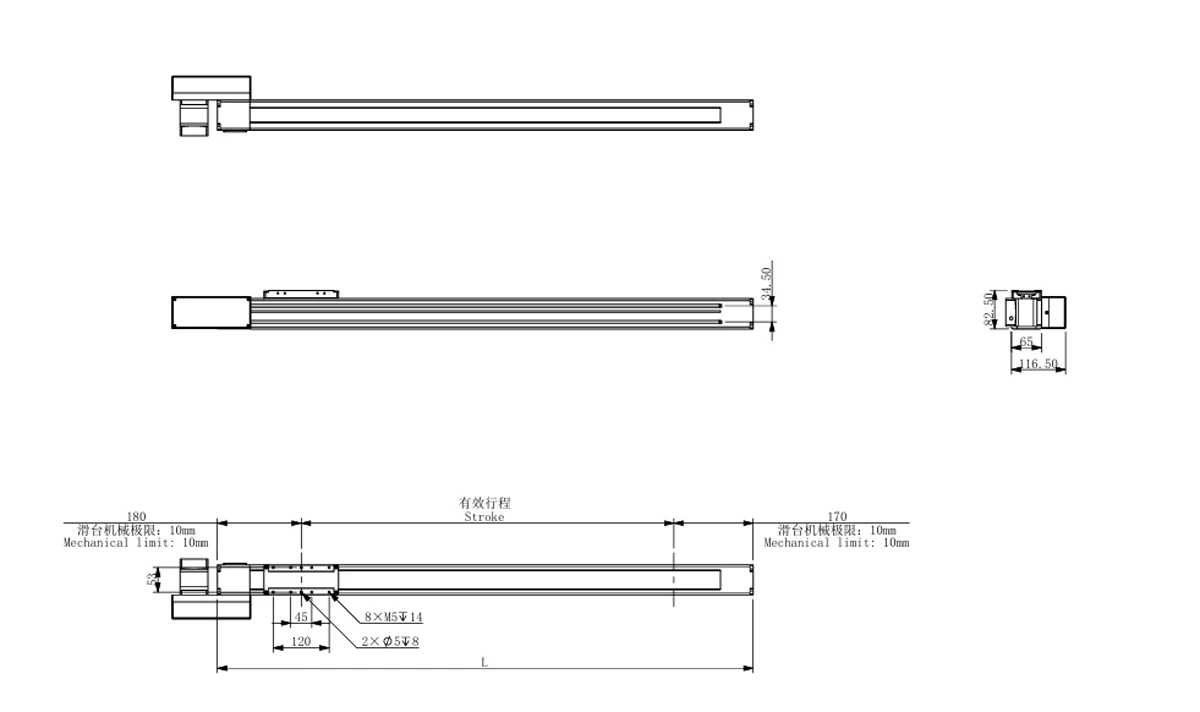

product-1200-712

Applications & Components

▶ Inspection machinery of conveyor system for middle frame of mobile phones; Flexible circuit board (PCB) laminating machine; Li-battery tab slitting machine; SMT loading/unloading machine

▶ New Energy: Cell Sorting Machine for Energy Storage Battery; Conveyor line of battery pack assembly production line; Inspection machine of solar silicon wafer; Charging station component assembly machine

▶ Medical Device: Liquid dispensing machine for in-vitro; Medical device packaging machine; Nucleic acid testing machine; Optical drive machine of medical device

Why Choose This Machine

With respect to the design that would need frequent opening and mold change, currently, we adopt the standard front right motor assembly design that is interchangeable with no modification at all for the machine equipment drawings. The cycle time of your product development will be shortened by more than 60%, while the cost for mass manufacturing can even be ignored because of the interchangeability.

Part of Your Smart Factory

Essentially, Right-Angle Stepper Belt-Driven Linear Motion Rail Unit is uniquely built to accommodate the demands of contemporary manufacturing practices that entail flexibility, digitization, and standardization, and is therefore able to integrate seamlessly into your intelligent manufacturing system as an integral component of the linear actuator.

FAQ(Frequently Asked Questions)

Q: How do Right-Angle Stepper Belt-Driven Linear Guide Stage and Left differ from each other?

A: They are identical in specification, dimensions, and mounting holes; yet, there is one point where they differ, and that is the direction of installing the motors in them. The motor used in the Right is foldable to the right side of the motor front, while the motor used in Left is foldable to the left side of the motor front.

Q: Are there any differences between the loads that each technique can carry? If there are any differences, what is the maximum load capacity of each?

A: Definitely there will be some differences between the load capacities of each technique. Regarding the first technique of mounting, which is the horizontal mounting technique, the load capacity is 15 kg, whereas the maximum load capacity is 20 kg. The load capacity for the second technique of mounting, which is the vertical mounting technique, lies between 8 kg and 12 kg.

Q: How long does it take to service the module? Is the module to be dismantled during servicing?

A: It all boils down to how far the procedure advances. At any rate, the servicing period for the module can either be 2000 km or six months from the date the module was started up, whichever is sooner. Nevertheless, one must bear in mind that during the servicing of the module, it is necessary to lubricate it through a hole in the module. The steel ring cannot be removed together with the module.
