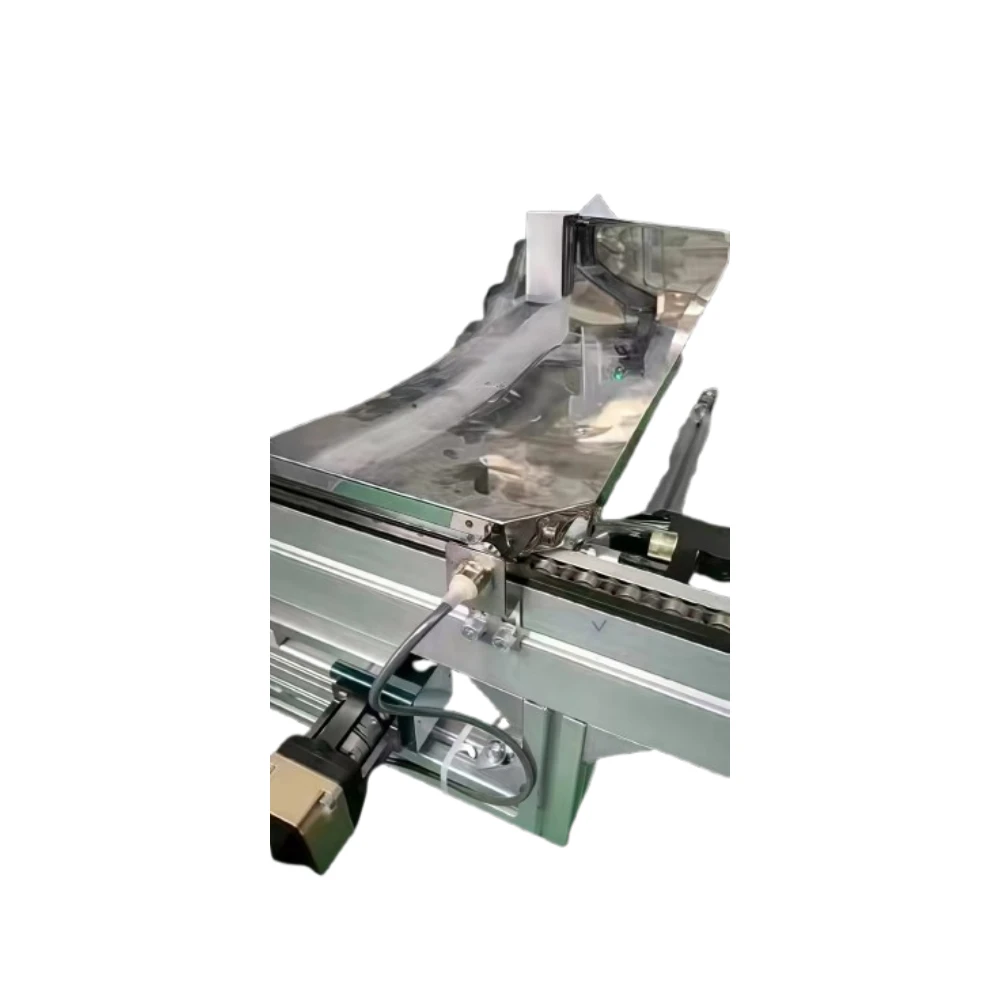

Product Introduction
This Industrial Conveyor Belt Type Linear Motion Module is a high-performance linear transmission unit engineered for continuous material handling and long-stroke positioning applications. It adopts a robust industrial conveyor belt as the core transmission medium, paired with precision linear guide rails and a high-rigidity aluminum alloy frame. Driven by motors and supported by high-quality drive and driven rollers, it delivers stable, low-noise, high-speed linear reciprocating motion. Unlike traditional ball screw or timing belt modules, it excels in long-distance travel, heavy load capacity, and uninterrupted operation, making it a versatile choice for logistics sorting, production line material transfer, and automated warehousing systems.
Key Benefits
▶ Designed for ultra-long stroke applications, supporting custom lengths to accommodate large-scale industrial layouts.
▶ Boasts exceptional load-bearing capacity, ideal for medium to heavy-duty material transport tasks.
▶ Enables continuous high-speed operation, significantly boosting production line throughput and efficiency.
Technical Specifications
|
Model |
Industrial Conveyor Belt Type Linear Motion Module |
|||
|
Stroke (S) |
mm |
|||
|
Repeat Positioning Accuracy |
±0.01 / ±0.02 mm |
|||
|
Lead |
5 / 10 / 20 mm |
|||
|
Max. Horizontal Load (kg) |
70 / 47 / 24 |
|||
|
Max. Vertical Load (kg) |
17 / 12 / 6 |
|||
|
Max. Speed |
250 / 500 / 1000 mm/s |
|||
|
AC Motor Configuration |
200W / 400W |
|||
|
Ball Screw Diameter |
Ø16 / Ø20 |
|||
|
Linear Guide Model |
EGH15CA |
|||
|
Coupling Model |
P40-42-10-Motor Shaft |
|||
|
External Sensor |
SX572NPN |
|||
|

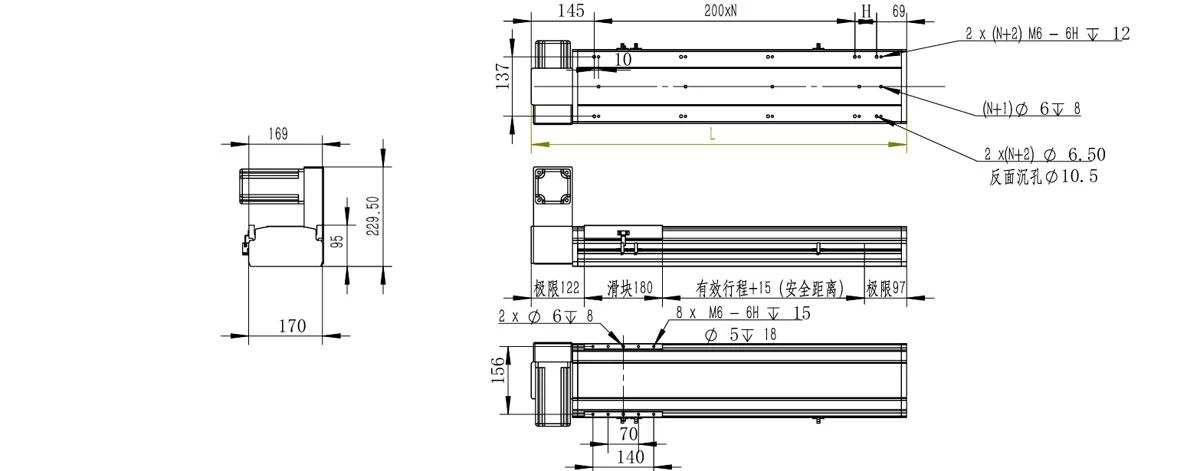

Effective Stroke (mm) |
L(mm) |
N |
H(mm) |
|
|
100 |
514 |
1 |
100 |
|
|
150 |
565 |
1 |
150 |
|
|
200 |
614 |
1 |
200 |
|
|
250 |
664 |
1 |
50 |
|
|
300 |
714 |
2 |
100 |
|
|
350 |
764 |
2 |
150 |
|
|
400 |
814 |
2 |
200 |
|
|
450 |
864 |
3 |
50 |
|
|
500 |
914 |
3 |
100 |
|
|
550 |
964 |
3 |
150 |
|
|
600 |
1014 |
3 |
200 |
|
|
650 |
1064 |
4 |
50 |
|
|
700 |
1114 |
4 |
100 |
|
|
750 |
1164 |
4 |
150 |
|
|
800 |
1214 |
4 |
200 |
|
|
850 |
1264 |
5 |
50 |
|
|
900 |
1314 |
5 |
100 |
|
|
950 |
1364 |
5 |
150 |
|
|
1000 |
1414 |
5 |
200 |
|
Applications & Components
▶ Logistics automated sorting systems and parcel handling conveyor lines.
▶ Assembly line conveying equipment for 3C electronics, food processing, and beverage industries.
▶ Linear motion platforms for packaging machinery and printing equipment.
Why Choose This Machine
The conveyor belt drive design is inherently more suited to long-stroke and heavy-load conveying compared to conventional linear modules. High-strength industrial conveyor belts offer superior wear resistance, minimizing the risk of slippage or breakage during prolonged use. Flexible modular construction allows for multi-section splicing, enabling the creation of ultra-long stroke configurations. Engineered for industrial-grade reliability, it supports 24/7 high-speed operation with minimal downtime and consistent performance. Standardized mounting dimensions ensure seamless integration with a wide range of automation equipment. Factory direct supply guarantees stable quality, competitive pricing, and comprehensive customization services.
Part of Your Smart Factory
This Industrial Conveyor Belt Type Linear Motion Module integrates long stroke capability, high load capacity, and continuous operation efficiency. It seamlessly connects with various smart factory automation equipment to automate material conveying, sorting, and transfer processes, effectively elevating production line automation levels and operational efficiency. It serves as a critical and reliable core conveying component in the construction and upgrading of your modern smart factory.
