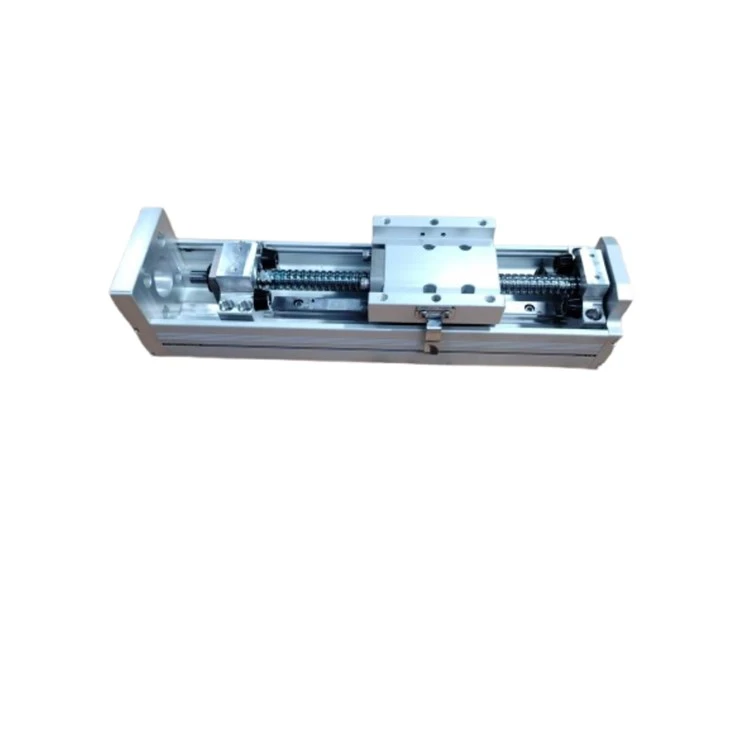

Product Introduction
The Dust-proof Ball Screw Module is a timing belt-driven linear module designed specifically for high-speed, long-stroke automation scenarios. With an integrated aluminum alloy body, high-tension timing belt transmission and high-rigidity linear guide, it delivers smooth and low-noise linear motion with full stroke coverage from 50mm to 1100mm, providing an efficient and reliable transmission solution for high-speed sorting, rapid transfer, and long-distance conveying equipment.
Key Benefits
▶High-Speed & Low-Noise Transmission
▶High Load & Rigidity
▶Flexible Configuration Upgrade
▶Long Stroke & Cost-Effective
▶High-Speed & Low-Noise Transmission
▶High Load & Rigidity
▶Flexible Configuration Upgrade
▶Long Stroke & Cost-Effective
Technical Specifications
|
Module Model |
Dust-proof Ball Screw Module |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Ball Screw Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
40kg / 30kg / 15kg |
||
|
Max Vertical Load |
11kg / 9kg / 4kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
100W / 200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm |
||
|
Linear Guide Brand/Model |
EGW15CA |
||
|
Timing Pulley Model |
3M-40-17 |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

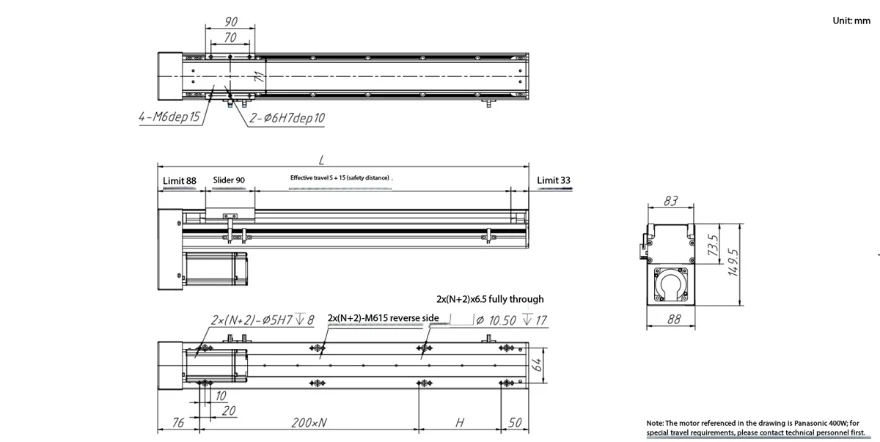

50 |
276 |
0 |
150 |
|
100 |
326 |
0 |
200 |
|
150 |
376 |
1 |
50 |
|
200 |
426 |
1 |
100 |
|
250 |
476 |
1 |
150 |
|
300 |
526 |
1 |
200 |
|
350 |
576 |
2 |
50 |
|
400 |
626 |
2 |
100 |
|
450 |
676 |
2 |
150 |
|
500 |
726 |
2 |
200 |
|
550 |
776 |
3 |
50 |
|
600 |
826 |
3 |
100 |
|
650 |
876 |
3 |
150 |
|
700 |
926 |
3 |
200 |
|
750 |
976 |
4 |
50 |
|
800 |
1026 |
4 |
100 |
|
850 |
1076 |
4 |
150 |
|
900 |
1126 |
4 |
200 |
|
950 |
1176 |
5 |
50 |
|
1000 |
1226 |
5 |
100 |
|
1050 |
1276 |
5 |
150 |
|
1100 |
1326 |
5 |
200 |
Applications & Components
▶Logistics Sorting: High-speed sorting and automatic code scanning conveying equipment for express/electric commerce packages
▶Other Scenarios: Material handling modules for storage rack access and automated storage systems
▶General Automation: High-speed transfer manipulators, long-distance visual inspection platforms, and assembly line conveying units
Why Choose This Machine
The Dust-proof Ball Screw Module adopts a combination of industry high-tension timing belt and precision guide rail, completes tension calibration and load testing before delivery, and keeps standard specifications in stock with short delivery cycles.
Part of Your Smart Factory
The Dust-resistant Ball Screw Module timing belt module can seamlessly connect to Industry 4.0 smart production lines, compatible with mainstream PLC and robot control systems, supports multi-axis linkage control, and can be quickly integrated into automated sorting, conveying and transfer systems, providing a stable and reliable core transmission unit for the high-speed logistics link of smart factories.
