Product Introduction

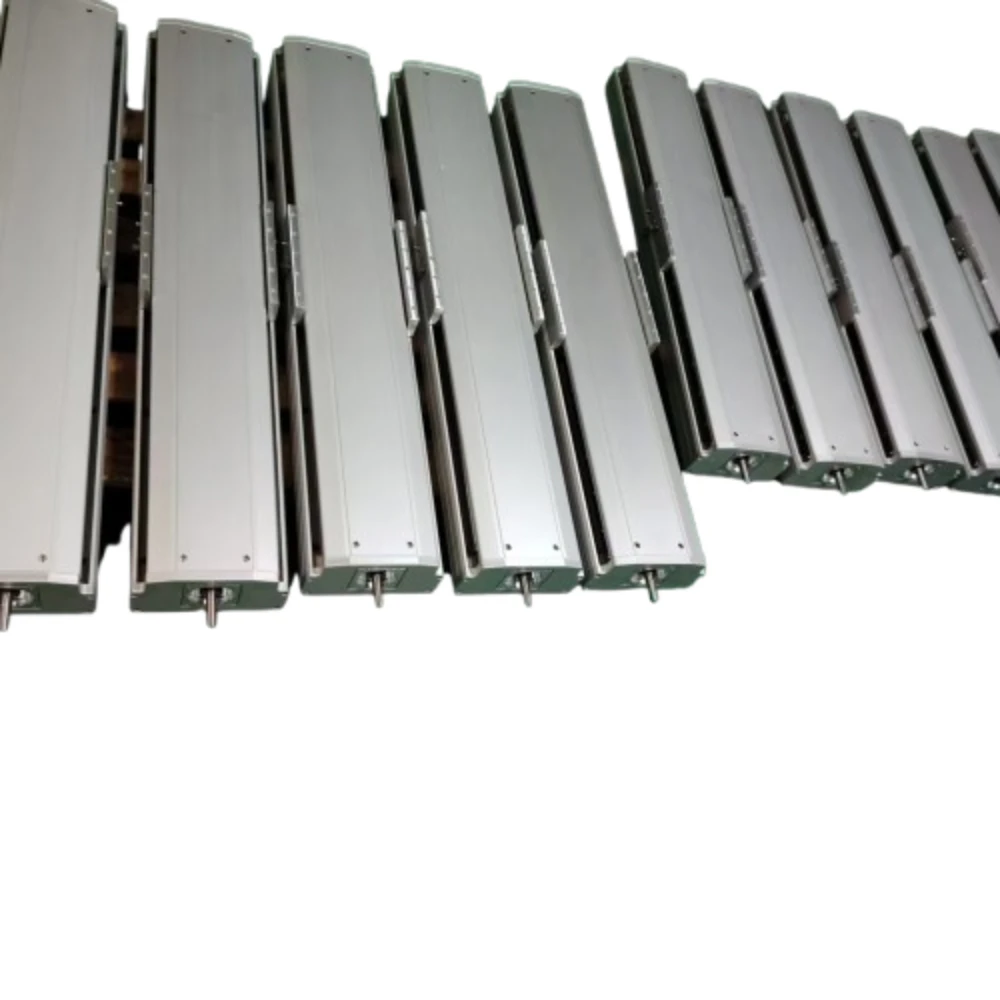

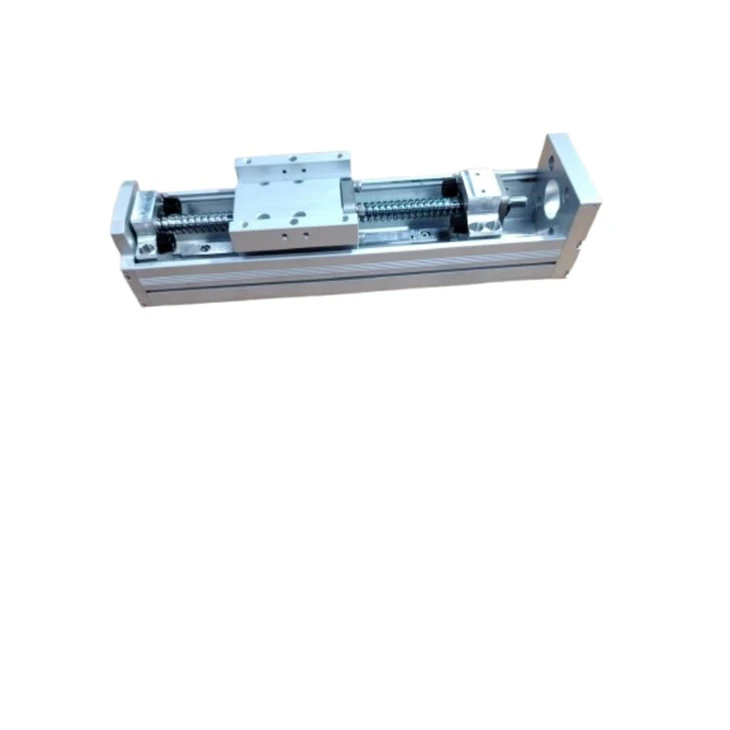

The Dust-sealed Ball Screw Linear Carriage is a high-speed, high-precision linear motion module purpose-built for dynamic automation applications, such as pick-and-place systems, high-cycle assembly lines, and rapid positioning equipment. Its robust aluminum alloy structure, paired with a high-rigidity ball screw and linear guide, delivers exceptional speed stability and consistent accuracy under continuous high-cycle operation. Compatible with 200W/400W AC motors and offering 100–1000mm stroke options, it balances speed, precision, and durability for demanding industrial environments.
Key Benefits
▶Balanced Speed & Accuracy
▶Versatile Load & Lead Options
▶Reinforced Structural Stability
Technical Specifications
|
Module Model |
Dust-sealed Ball Screw Linear Carriage |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Load Capacity (Horizontal) |
70 / 47 / 24 kg |
||
|
Load Capacity (Vertical) |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|

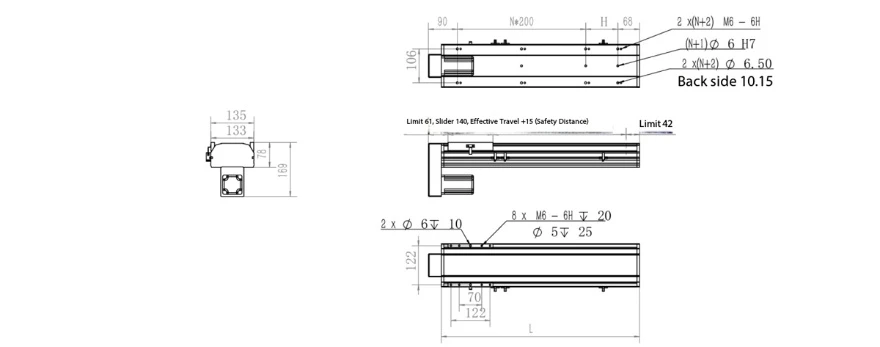

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
318 |
1 |
0 |
|
150 |
368 |
1 |
50 |
|
200 |
418 |
1 |
100 |
|
250 |
468 |
1 |
150 |
|
300 |
518 |
1 |
200 |
|
350 |
568 |
2 |
50 |
|
400 |
618 |
2 |
100 |
|
450 |
668 |
2 |
150 |
|
500 |
718 |
2 |
200 |
|
550 |
768 |
3 |
50 |
|
600 |
818 |
3 |
100 |
|
650 |
868 |
3 |
150 |
|
700 |
918 |
3 |
200 |
|
750 |
968 |
4 |
50 |
|
800 |
1018 |
4 |
100 |
|
850 |
1068 |
4 |
150 |
|
900 |
1118 |
4 |
200 |
|
950 |
1168 |
5 |
50 |
|
1000 |
1218 |
5 |
100 |
Applications & Components
▶High-speed pick-and-place machines
▶Automated packaging lines
▶Semiconductor handling systems
Why Choose This Machine
Dust-sealed Ball Screw Linear Carriage features industrial rigid structure, steady high-speed operation and precise positioning. It offers multiple lead, load and stroke options, supports horizontal and vertical mounting, and comes with standard sensors for easy installation and system integration. With premium quality and cost performance, it perfectly matches your automated and smart factory projects.
Part of Your Smart Factory
Designed for modern smart manufacturing, the Dustproof Ball Screw Motion Carriage linear module integrates seamlessly into automated production lines, supporting high-cycle, low-error operation to boost factory efficiency and reliability.
FAQ(Frequently Asked Questions)
Q: What makes the Dust-sealed Ball Screw Linear Stage different from standard modules?
A: The Dust-sealed Ball Screw Linear Stage is optimized for high-speed performance, with max speeds up to 1000mm/s while maintaining ±0.02mm repeat accuracy, making it ideal for high-cycle automation tasks.
Q: Can the Dust-protected Ball Screw Linear Slide be mounted both horizontally and vertically?
A: Yes. It supports both mounting orientations, with dedicated horizontal and vertical load ratings to guide your selection.
Q: What sensors come standard with the Dust-sealed Ball Screw Motion Carriage?
A: It is equipped with an SX572 NPN external sensor by default, suitable for limit sensing and automatic cycle control.
