Product Introduction
The Right-side Power-Entry Ball Screw Linear Motion Platform is a right-motor-mounted belt-driven linear module, purpose-built for high-speed, heavy-load industrial automation scenarios. Featuring a reinforced alloy frame and high-efficiency synchronous belt drive, it delivers ultra-stable linear motion with minimal vibration, even under long-cycle continuous operation.
Key Benefits
▶Right-Mount Design for Space Optimization
▶High Speed & Heavy Load Performance
▶Ultra-Smooth & Quiet Operation
Technical Specifications
|
Model |
Right-side Power-Entry Ball Screw Linear Motion Platform |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
200 (Lead 5mm) / 180 (Lead 10mm) / 120 (Lead 20mm) |
||
|
Vertical Load (KG) |
65 (Lead 5mm) / 55 (Lead 10mm) / 45 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
86 / 750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø32 |
||
|
Guide Rail Brand / Model |
HGH25CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

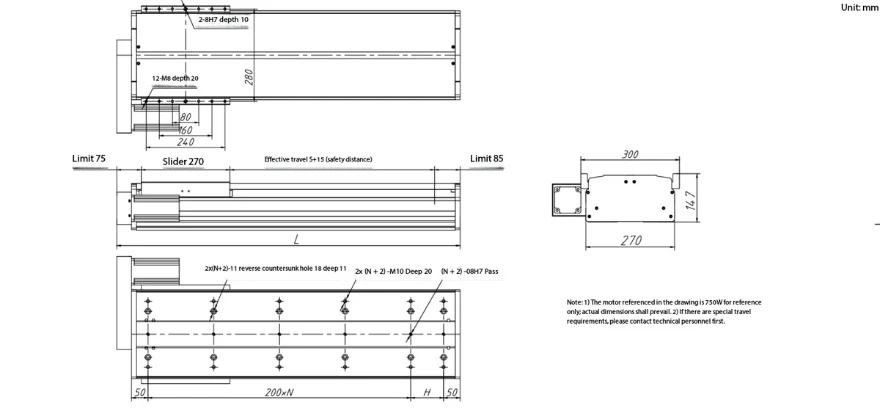

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
545 |
1 |
200 |
|
150 |
595 |
2 |
50 |
|
200 |
645 |
2 |
100 |
|
250 |
695 |
2 |
150 |
|
300 |
745 |
2 |
200 |
|
350 |
795 |
3 |
50 |
|
400 |
845 |
3 |
100 |
|
450 |
895 |
3 |
150 |
|
500 |
945 |
3 |
200 |
|
550 |
995 |
4 |
50 |
|
600 |
1045 |
4 |
100 |
|
650 |
1095 |
4 |
150 |
|
700 |
1145 |
4 |
200 |
|
750 |
1195 |
5 |
50 |
|
800 |
1245 |
5 |
100 |
|
850 |
1295 |
5 |
150 |
|
900 |
1345 |
5 |
200 |
|
950 |
1395 |
6 |
50 |
|
1000 |
1445 |
6 |
100 |
Applications & Components
▶Logistics Sorting Automation
▶Electronics & Home Appliance Assembly
▶Printing & Labeling Systems
Why Choose This Machine
It can be freely embedded into intelligent production lines and multi-axis systems to realize automatic high-speed operation. It cuts manual intervention effectively and helps factories achieve unmanned and efficient production upgrading.
Part of Your Smart Factory
This right-side power-entry ball screw linear motion platform offers high-precision positioning with a compact right-side power inlet design. It seamlessly integrates with smart factory equipment to automate assembly, testing, and processing tasks, serving as a reliable core motion component to boost your production efficiency.
FAQ(Frequently Asked Questions)
Q: What's the advantage of the right-mount design?
A: The right-mount motor configuration saves installation space, making it ideal for equipment with limited layout room.
Q: Will the belt slip or stretch over time?
A: High-quality anti-slip synchronous belt is used; regular tension adjustment effectively prevents elongation and slipping.
Q: Is it suitable for continuous high-speed production?
A: Its high-speed, low-vibration design makes it ideal for long-cycle, continuous high-speed production environments.
