Product Introduction

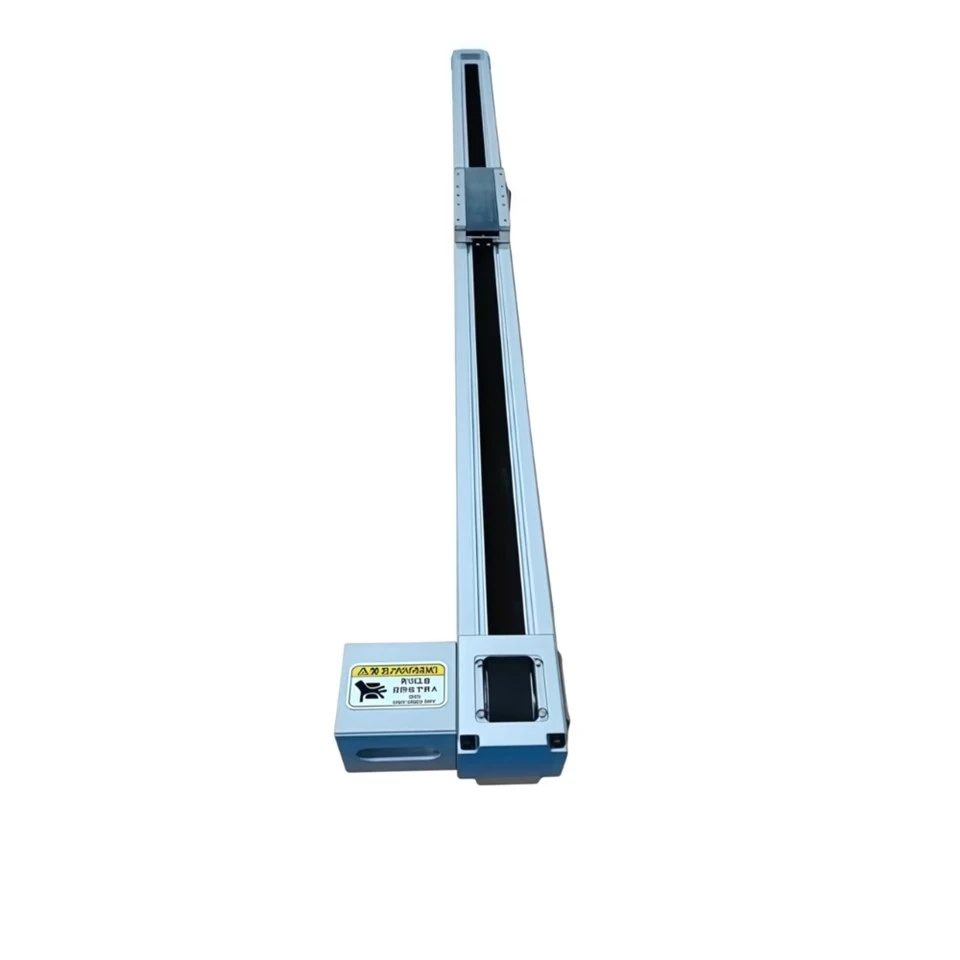

The Left-Skewed Timing Belt Linear Actuator with Brake is a high-performance belt-driven linear module engineered specifically for applications requiring the motor to be mounted on the left side. Built on a rigid 120mm aluminum profile, it combines a precision EGH15CA linear guide with a robust 5M-20 timing belt to deliver smooth, high-speed motion with consistent accuracy. This design is particularly suitable for equipment layouts where space on the right is limited, making it ideal for tight automation lines, laser engraving machines, and electronic assembly stations.
Key Benefits
▶ Left-side motor layout optimizes equipment space and avoids interference with surrounding components.
▶ Stable repeat positioning accuracy ensures consistent performance in long-term continuous operation.
▶ Industrial-grade structure and materials provide strong durability and low maintenance requirements.
Technical Specifications
|
Model |
Left-Skewed Timing Belt Linear Actuator with Brake |
|||
|
Stroke(S) |
mm |
|||
|
Repeat Positioning Accuracy(C/P) |
±0.08 mm |
|||
|
Lead |
125 mm |
|||
|
Max. Horizontal Load |
20 kg |
|||
|
Max. Speed |
6250 mm/s |
|||
|
AC Motor Configuration |
57/200W/400W |
|||
|
Timing Belt |
5M-20 |
|||
|
Linear Guide Model |
EGH15CA |
|||
|
Timing Pulley Model |
5M-25-21 |
|||
|
External Sensor |
SX672NPN |
|||
|

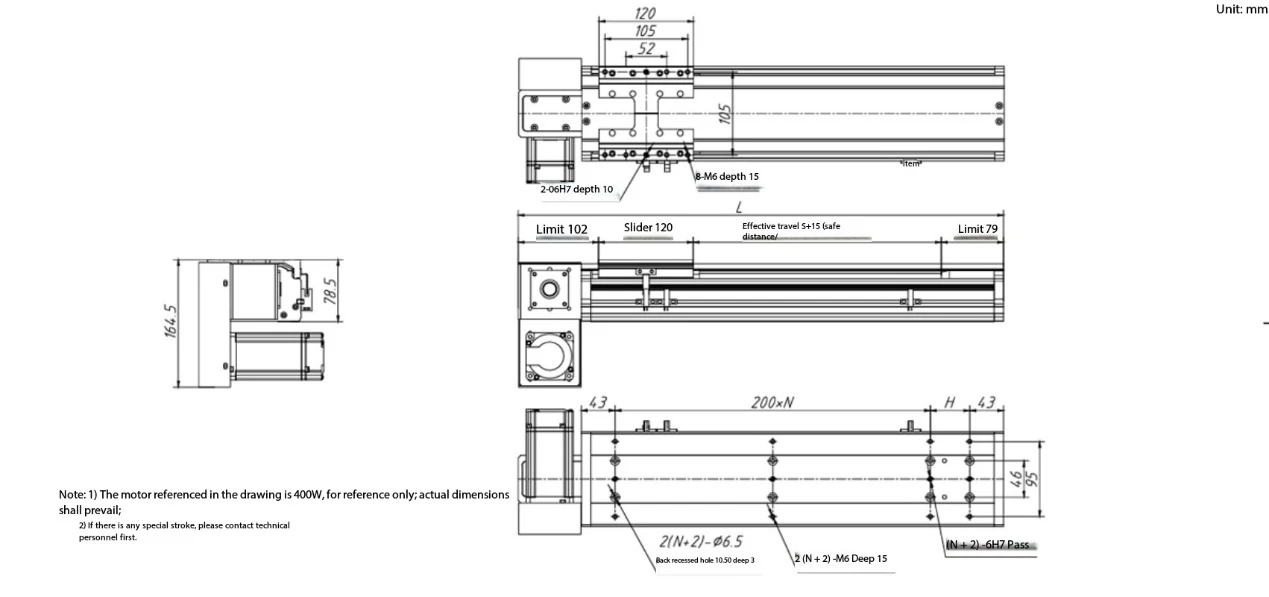

Effective Stroke(mm) |
L(mm) |
N |
H(mm) |
|
|
100 |
416 |
1 |
50 |
|
|
150 |
466 |
1 |
100 |
|
|
200 |
516 |
1 |
150 |
|
|
250 |
566 |
1 |
200 |
|
|
300 |
616 |
2 |
50 |
|
|
350 |
666 |
2 |
100 |
|
|
400 |
716 |
2 |
150 |
|
|
450 |
766 |
2 |
200 |
|
|
500 |
816 |
3 |
50 |
|
|
550 |
866 |
3 |
100 |
|
|
600 |
916 |
3 |
150 |
|
|
650 |
966 |
3 |
200 |
|
|
700 |
1016 |
4 |
50 |
|
|
750 |
1066 |
4 |
100 |
|
|
800 |
1116 |
4 |
150 |
|
|
850 |
1166 |
4 |
200 |
|
|
900 |
1216 |
5 |
50 |
|
|
950 |
1266 |
5 |
100 |
|
|
1000 |
1316 |
5 |
150 |
|
Applications & Components

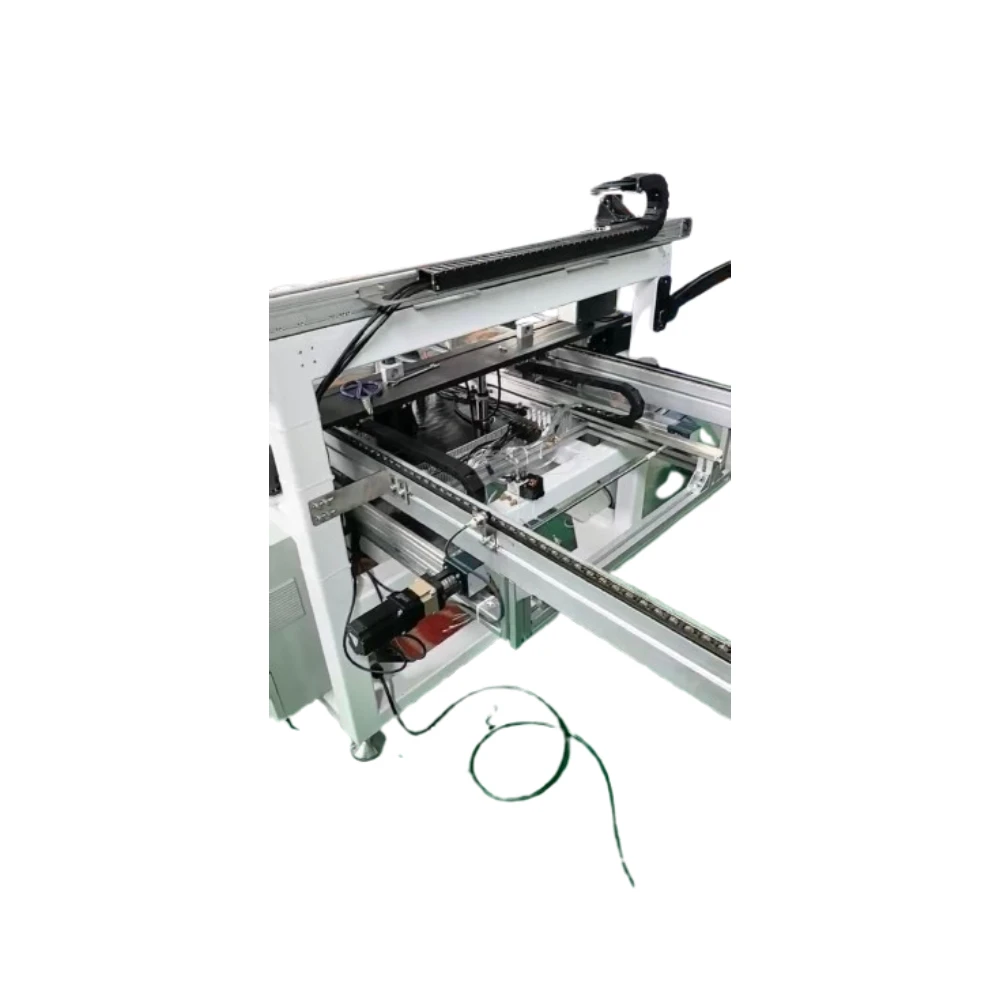

▶ Precision electronic manufacturing, including component assembly, screw fastening, and precision plug-in operations.
▶ Vision inspection and measurement systems for appearance detection, size scanning, and quality control.
▶ Non-standard intelligent machinery and multi-axis motion platforms used in assembly lines and testing equipment.
Why Choose This Machine
The Left-Skewed Timing Belt Linear Actuator with Brake linear module is designed with a dedicated left-side motor structure to fit special equipment layouts and avoid spatial conflicts. Its balanced transmission design ensures stable motion even at high speeds, while high-quality components reduce failure rates and extend service life. With a complete range of stroke choices and strong motor compatibility, it can be quickly integrated into various automated systems to improve efficiency and reduce overall construction costs.
Part of Your Smart Factory
As a key execution component in intelligent manufacturing systems, the Left-Oblique Mounted Timing Belt Linear Unit with Integrated Brake supports efficient, stable, and repeatable movement for automated production lines. It can work with robotic arms, detection devices, and conveyor systems to form a complete smart production unit, helping enterprises achieve less labor, higher consistency, and more flexible production scheduling.
FAQ(Frequently Asked Questions)
Q: Can this module be used in suspended installation?
A: It can be used in suspended installation, but the rated load will be reduced accordingly. Please contact us for accurate load parameters.
Q: Does the module come with a motor and sensor?
A: The standard product does not include a motor or sensor. We can provide matching solutions according to customer requirements.
Q: Can the running speed of the module be adjusted freely?
A: Yes, the speed can be adjusted flexibly through the motor driver according to actual process needs, within the range of 0–6250 mm/s.
